The Latest Way to Work with AutoCAD

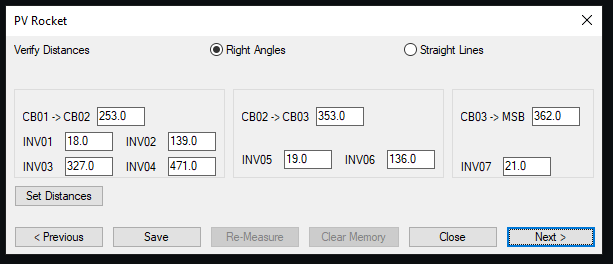

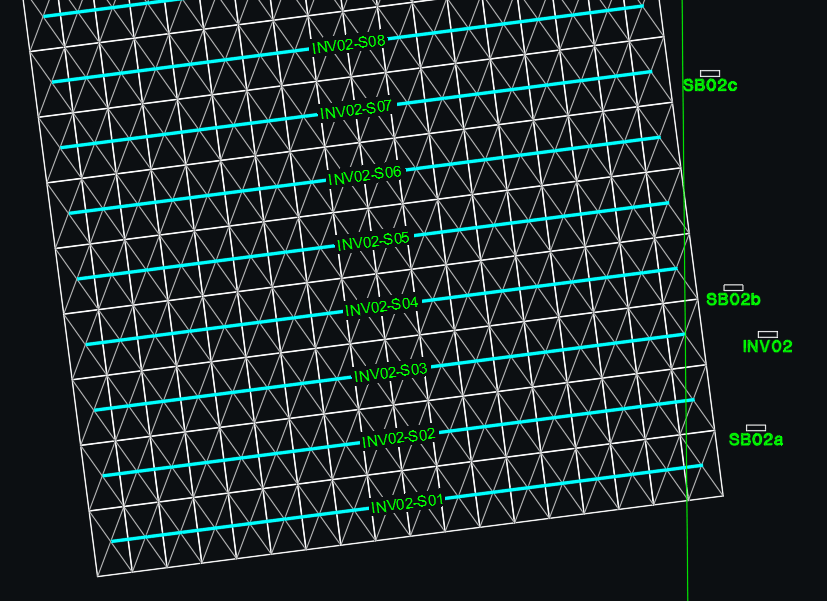

Our software automatically measures distances between modules, inverters and balance of system equipment. This removes the transfer back-and-forth between AutoCAD and spreadsheets.

By keeping everything inside AutoCAD, it reduces transfer and copy errors. Common errors enter by starting from a similar project and trying to track differences manually. PV Rocket starts every project from scratch quickly and easily.

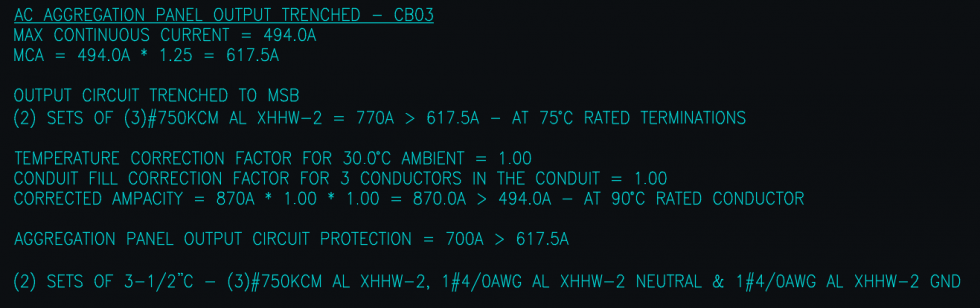

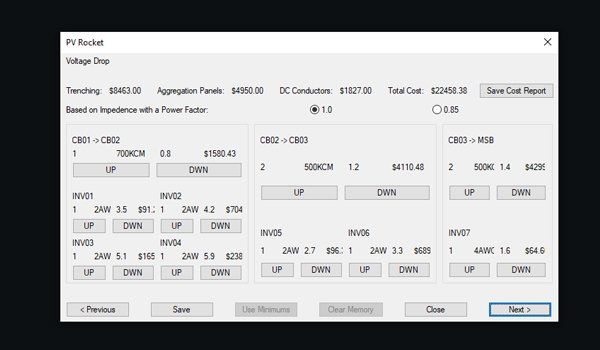

Measuring the "worst case" and designing all circuits to match can be done inside PV Rocket just like the standard manual design practice. That can aid installation but also drives up cost. It is an unnecessary practice with PV Rocket. PV Rocket can easily and instantly track all feeders and conductors individually to comply with customer requirements while minimizing cost.

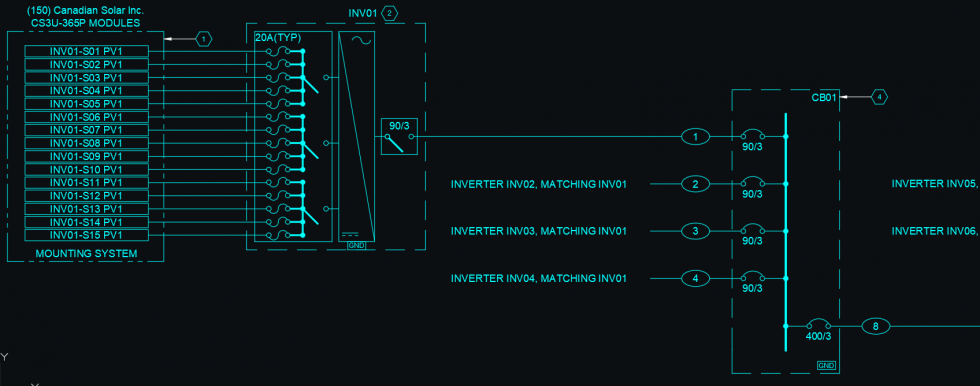

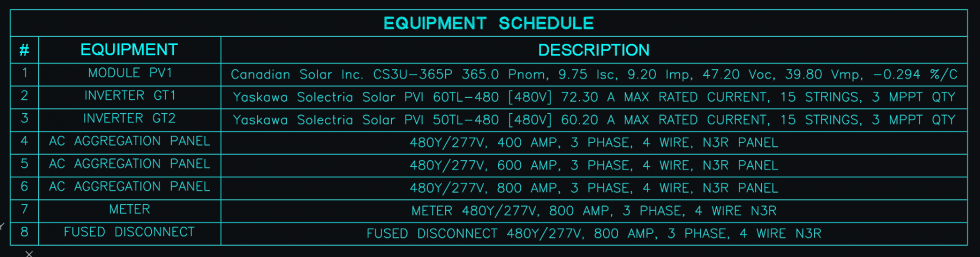

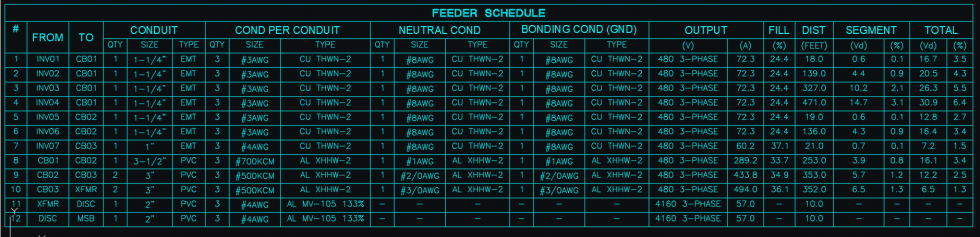

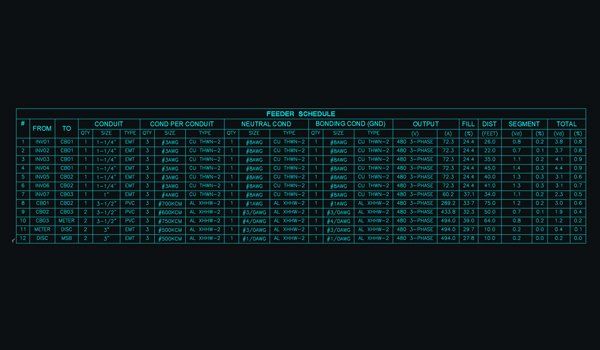

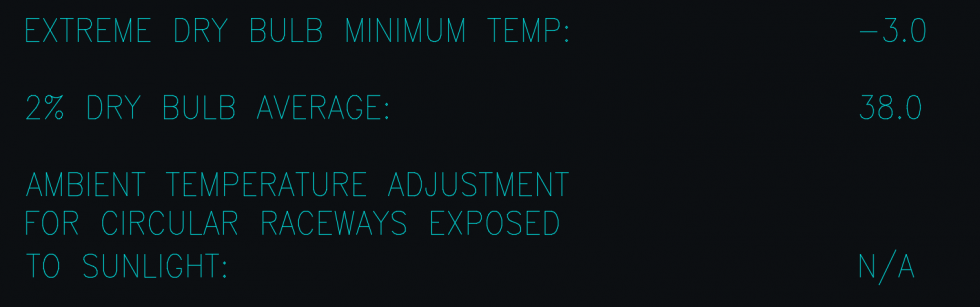

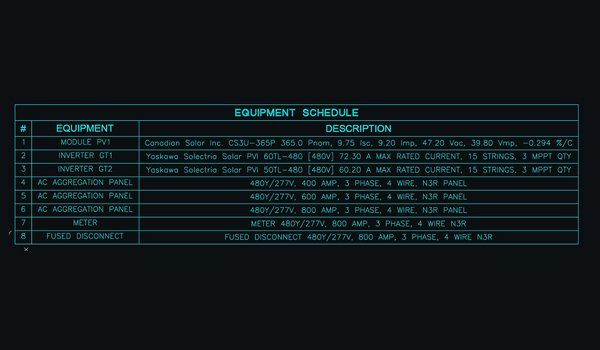

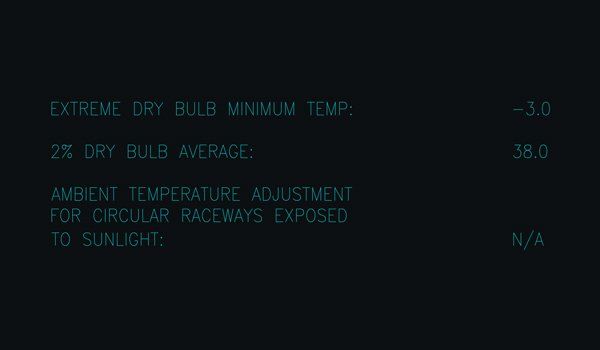

PV Rocket is flexible. You can add any number of AC combiner panels to bring together any number of string inverters, in any order. Temperature derating is calculated based on common sense questions of where and how the feeders are routed: interior, exterior, underground and roof. You can add generation power meters, additional disconnects, transformers, etc. and have the software track the connections and properly add them all to the feeder schedule and equipment schedule.

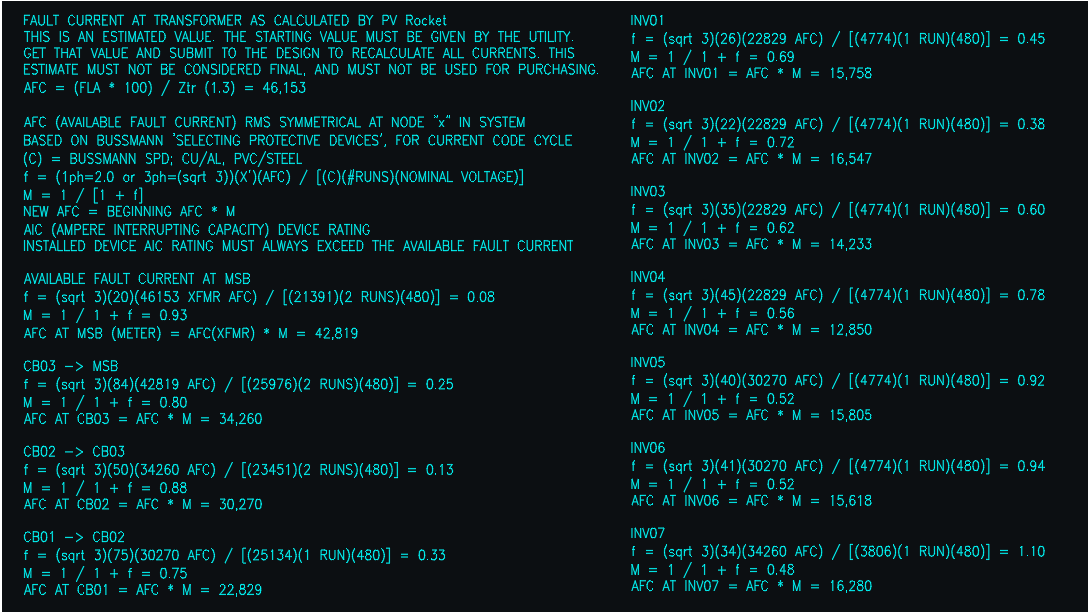

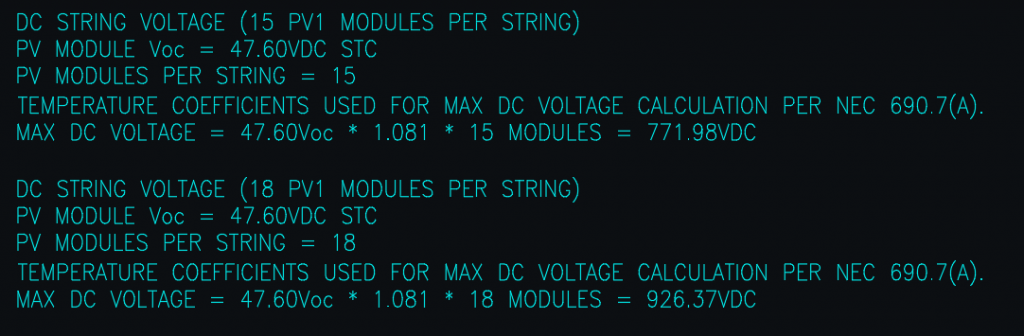

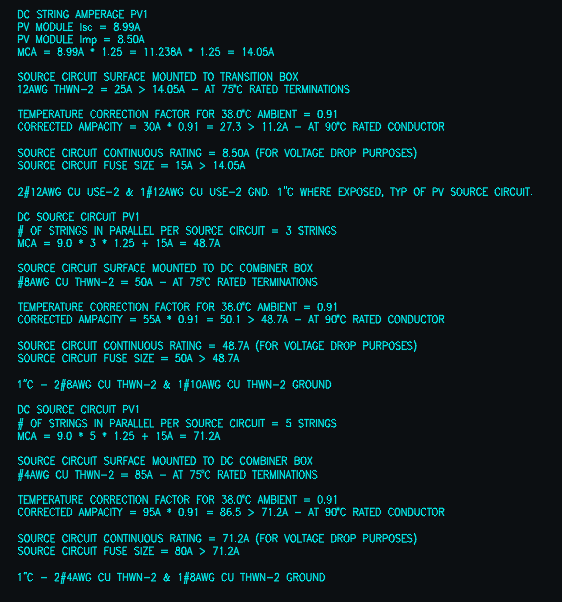

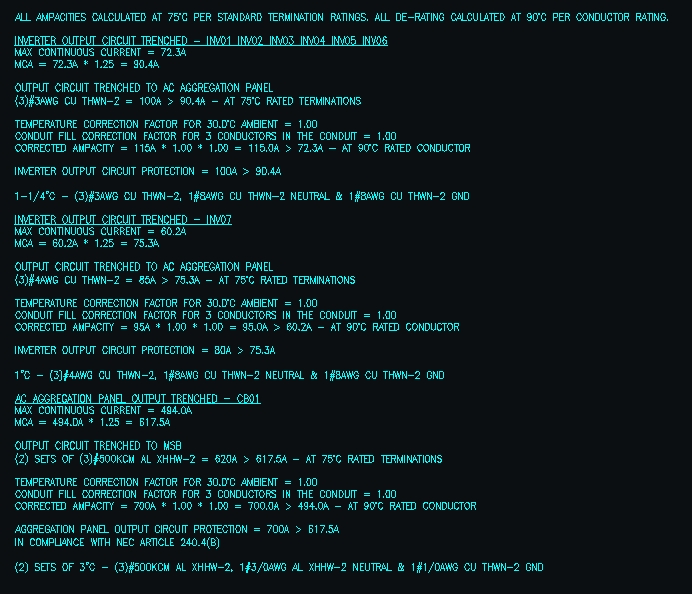

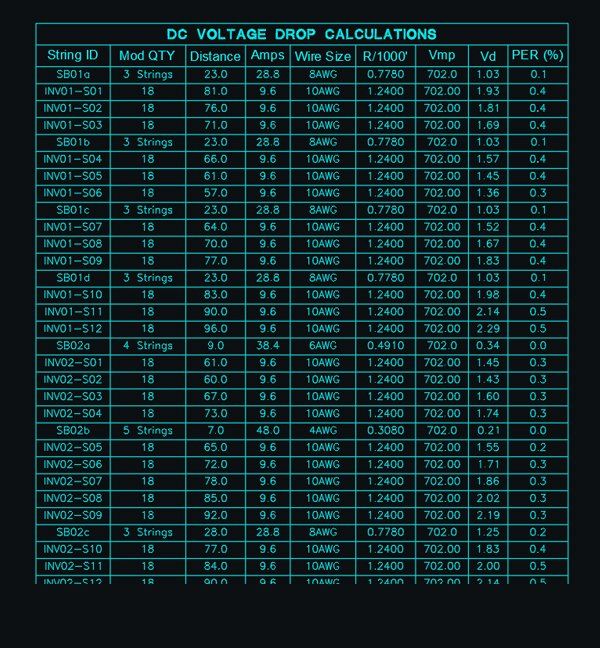

Circuit-by-circuit measurements and calculations for both AC and DC set PV Rocket apart. It calculates things that many designers either gloss over or do not consider at all. It might be possible to perform a manual design as fast as PV Rocket. But never with all the calculations performed and the precision of our software. PV Rocket will make every member of your team productive, accurate and error-free.

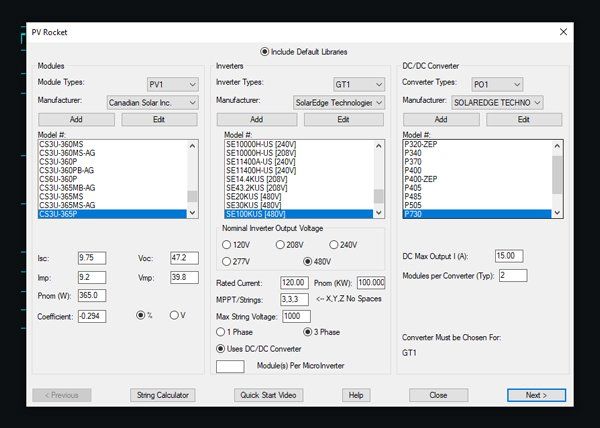

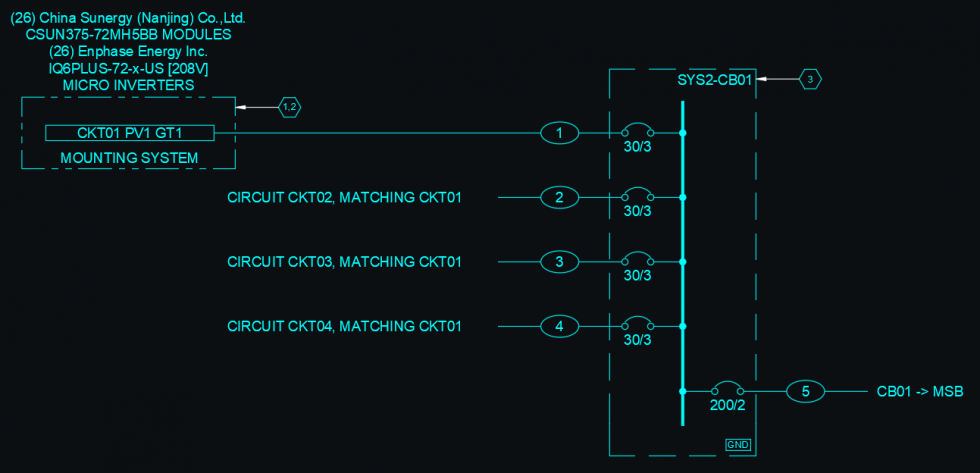

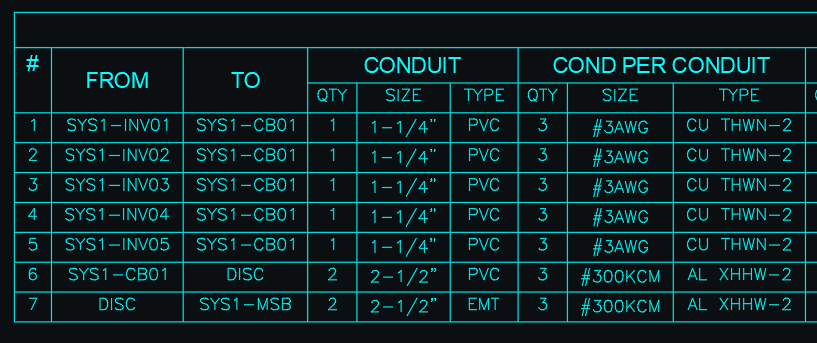

PV Rocket has been under development for five years with a dozen beta users. Most of the features it currently has come from its daily use. We can handle a wide variety of inputs, microinverters and multiple points of interconnection.

Design Your New Solar Panel Plans with Ease

We developed software in CAD design specifically to help build PV Systems. Our first-to-market product gives you outstanding flexibility in your choices. With PV Rocket, you can create plans and schematics for commercial contractors and development companies to design, plan implementation and approve solar PV Systems.

Construction plans can be created for your electrician to build and your local inspector to approve. We design contract documents for solar for your builder to build from as well. Contact us today for more information. Be sure to ask about our affordable subscription plans.
